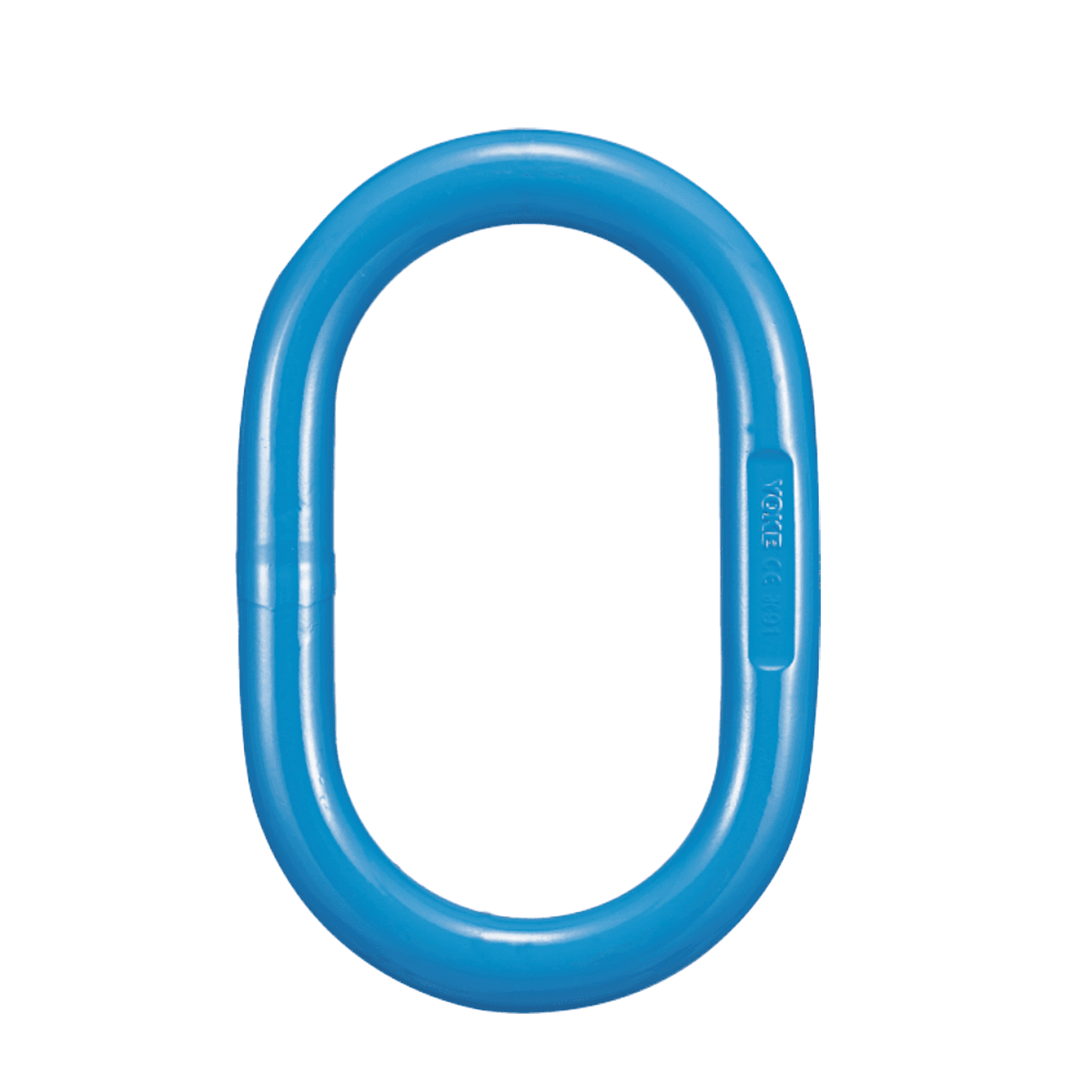

Welded Master Link X-001

Grade 10

Approved for all types of lifting slings.

Chain, wire rope, and webbing slings.

Item No.: X-001

Features

  • Quenched and Tempered Alloy Steel.
  • At least 25% greater WLL than traditional G80 products.
  • Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184.
  • Certified by DGUV GS-HM-37.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
  • Design Factor 5:1.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Tempering temperature at a minimum of 400°C.
  • Welded Master Link designed for 1-2 legs Chain, Wire Rope and Webbing Slings.
  • Each link is marked with batch number that links to the test certificate with full tracebility to raw materials.
