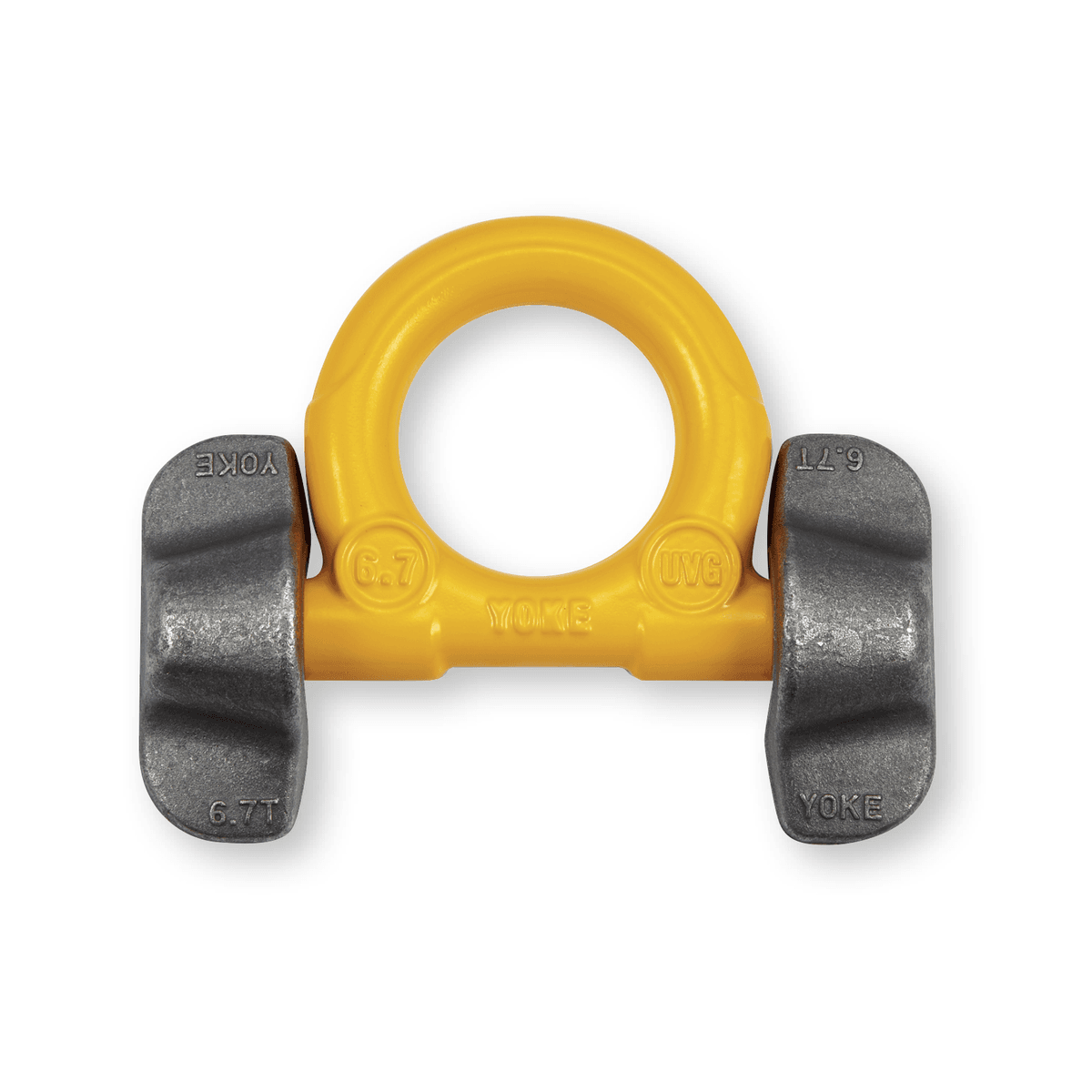

Weld-on Ring 8-082

Weldable lifting points

Safety in the field of operation.

The ring is stowable, thus eliminating the risk of tripping.

Item No.: 8-082

Features

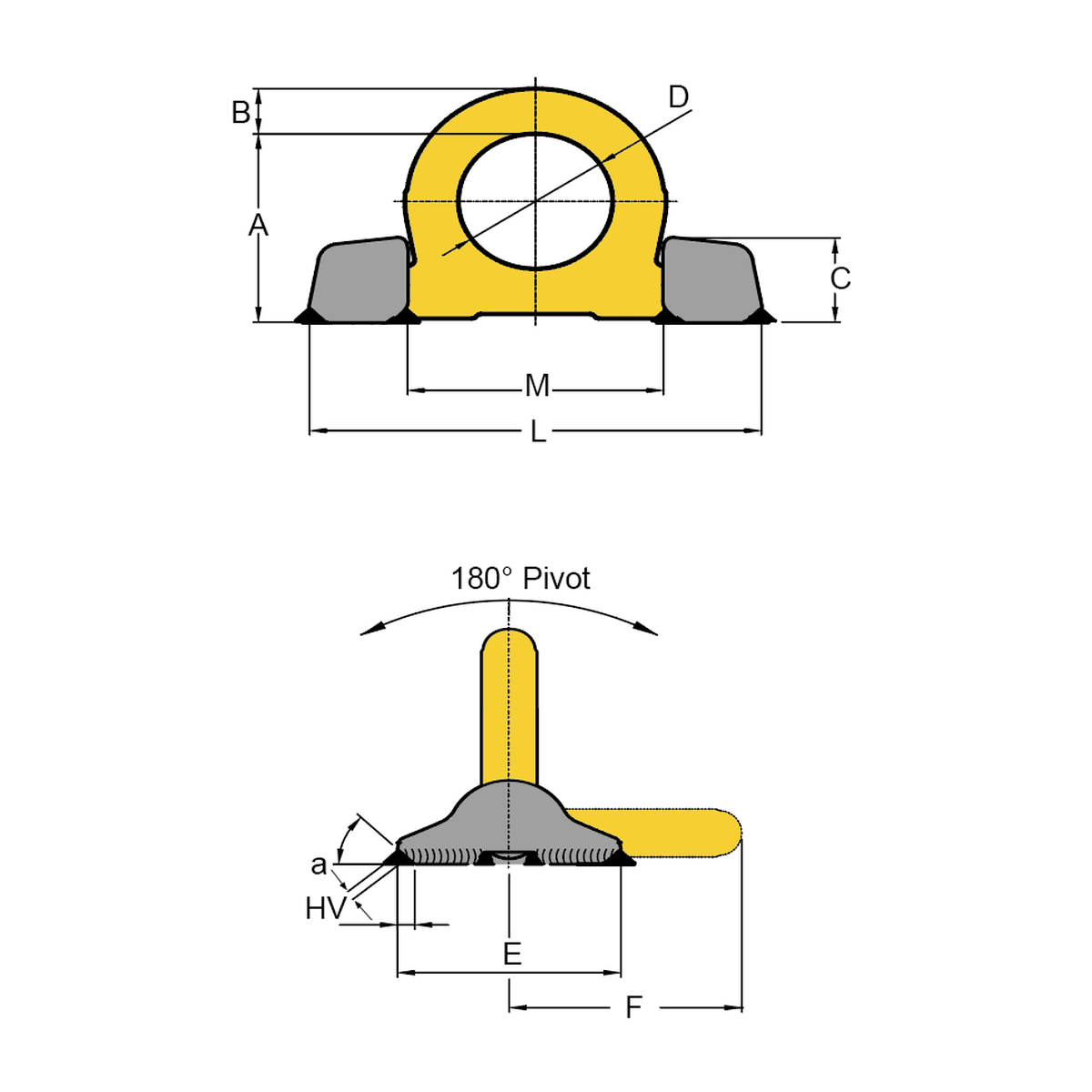

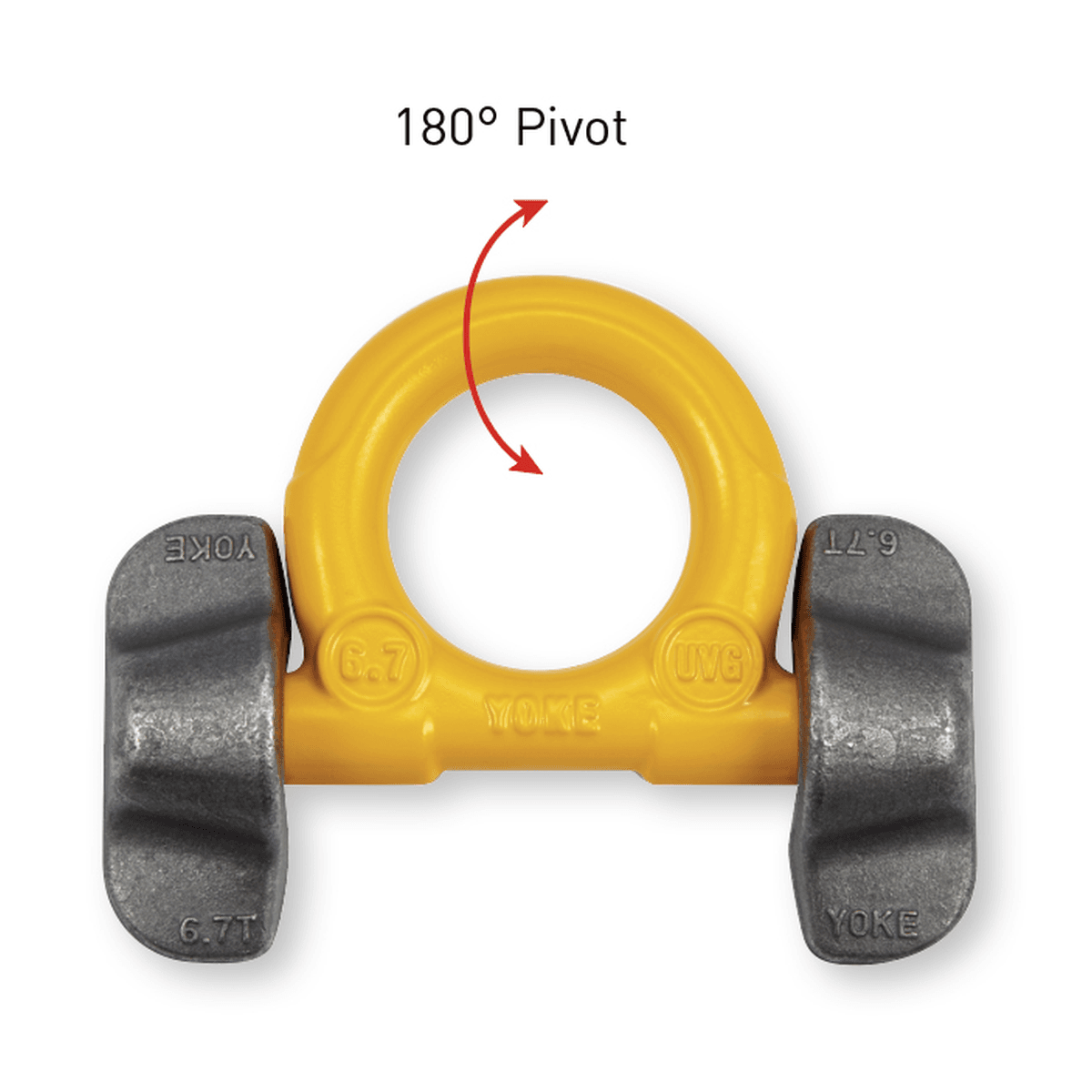

  • Pivots 180°, designed minimizes head room.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Tested and certified by DGUV GS-OA-15-04.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts are traceable to Test Certification.
  • Proof tested to 2.5 times the WLL.
  • The two points of attachment facilitate an even and optimal force distribution into the work piece and thus, usage of thinner base plates is possible.
  • The welding block is forged out of material with excellent welding properties.
  • Low profile design with high strength.
  • The ring is stowable thus avoiding the hazards of tripping and snagging.
