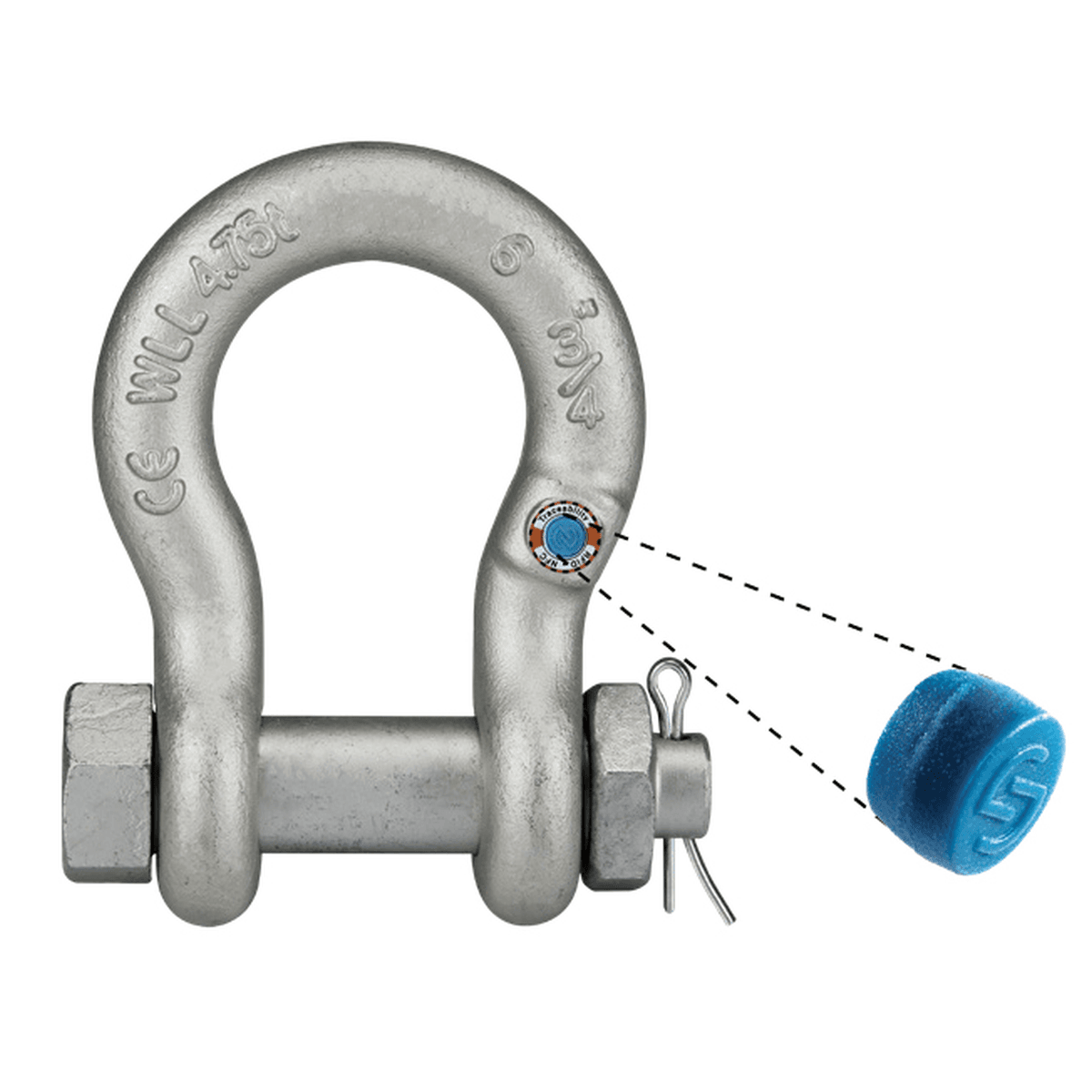

DA 808 Shackle

Connecting Components

Made of high-strength, corrosion-resistant steel for secure connection of lifting slings.

Ideal for offshore, crane, and heavy-duty applications under extreme conditions, hot-dip galvanized, RFID-enabled.

Item No.: DA-808

Features

Shackles are forged alloy steel with alloy pin, quenched and tempered.
Charpy tested in accordance with DNV-ST-E271.
Meet the performance requirements of US Federal Specification RR-C-271, Type IVA, Grade A, Class 3.
Application of shackles certified in accordance with DNV-ST-E271 and DNV-ST-E273.
Size and the Working Load Limit permanently shown on each shackle.
All shackles with Traceability Code which links to Test Certificate and quality traceability.
Proof tested to 2 times the WLL.
Design factor 8:1
20,000 cycle fatigue rated to 1.5 times Working Load Limit.
100% magnaflux crack detection during manufacturing.
Charpy test of 42 joules (31ft-lb) at -40°C (-40°F) for normal section.
Hot dip galvanized.
