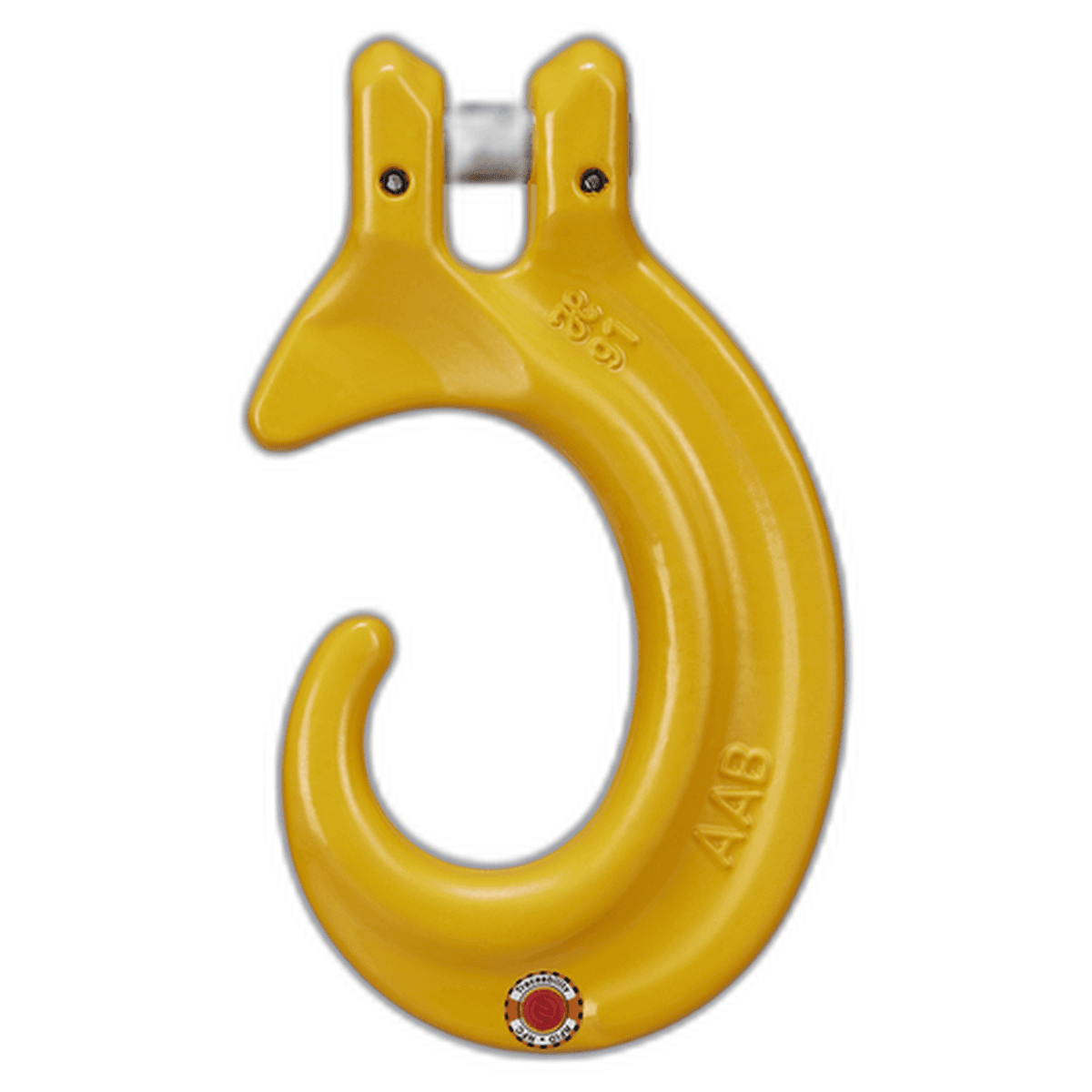

Clevis C Hook 8-097

Grade 8

Ideal for use with chains thanks to its clevis head.
Mounting via cotter pin, secure fit due to C-shape, RFID-compatible.

Item No.: 8-097

Features

  • Tempered alloy steel, forged, hardened, and tempered
  • Manufactured according to EN 1677-1 and ASTM A952/A952M
  • Certified by DGUV GS-OA-15-05
  • Safety factor 4:1, breaking load at least four times the load-bearing capacity
  • Load test at 2.5 times the load-bearing capacity, without permanent deformation
  • Fatigue test with 20,000 cycles at 1.5 times the load-bearing capacity
  • Marking with load-bearing capacity, grade 8, manufacturer's mark, and traceability, and equipped with a BlueSupra tag for unique identification
