Weld-on Point Designed with spring, stop at any angle 8-057

Weldable lifting points

Standard version with spring locking mechanism for various applications.

Quickly weldable thanks to integrated tabs.

Item No.: 8-057

Features

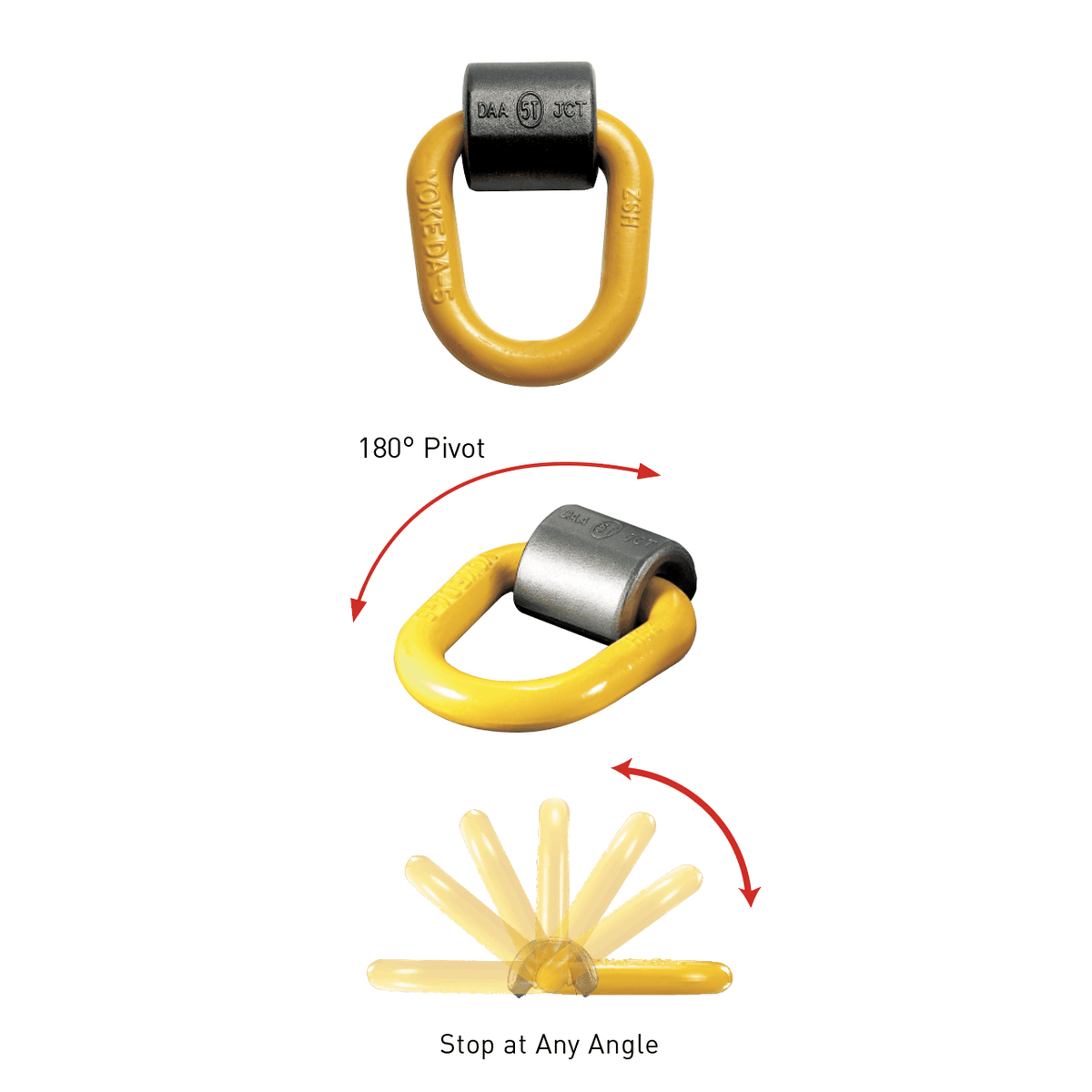

  • Pivots through 180°.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Manufactured and tested in accordance with EN1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts are traceable to Test Certification.
  • Proof tested to 2.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • WLL forged onto each product for quick and easy identification.
  • Lugs designed to assist the welding process.
  • A protected spring keeps the load ring in a required position. The parts are connected in such a way that they remain captive. The spring also reduces noise caused by vibrations.
  • Never apply load except in the same direction with the pivot direction.
