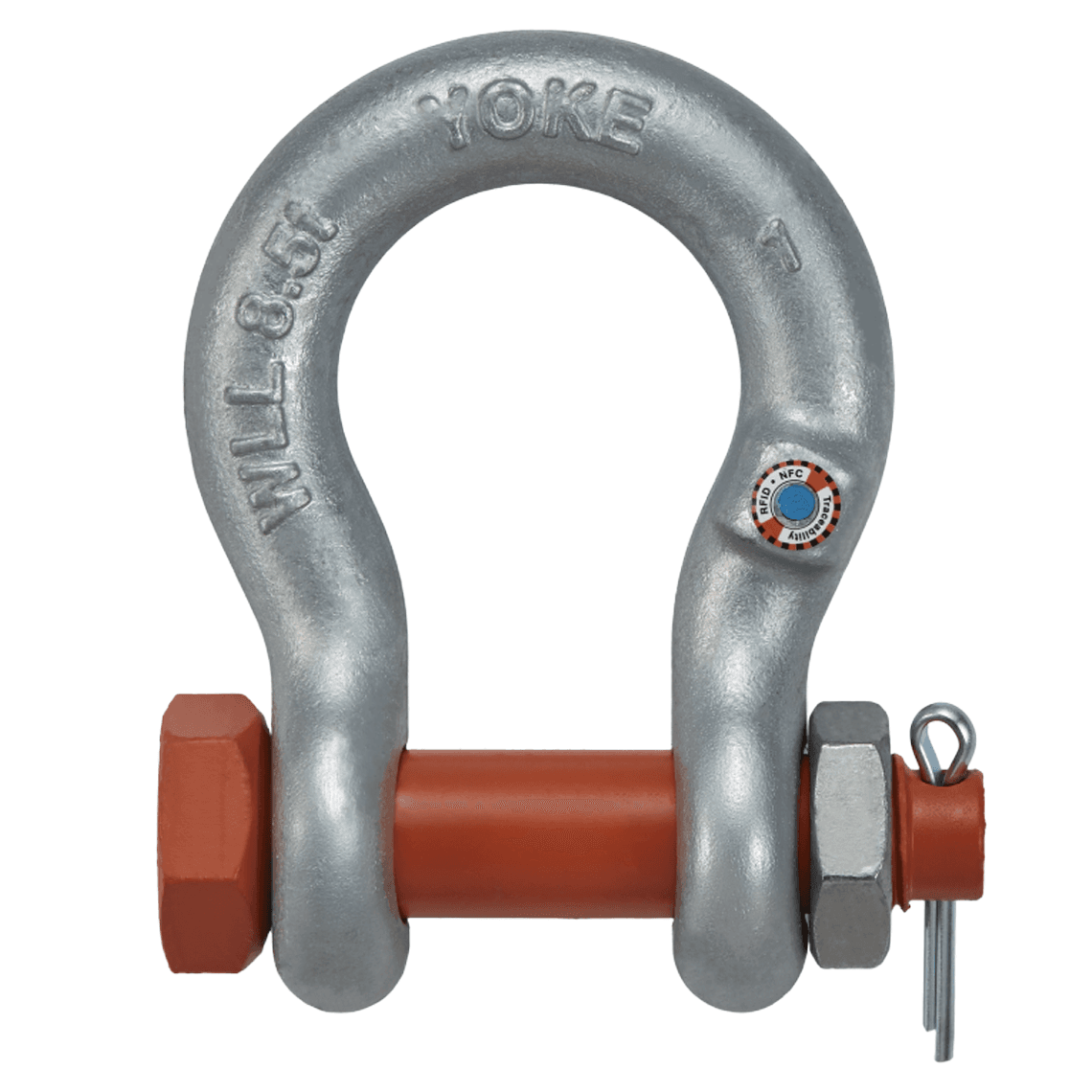

DA 838 Shackle

Connecting Components

For the secure connection of lifting slings in lifting and securing systems, ideal for offshore, marine, and heavy-duty applications, maximum strength and corrosion protection, hot-dip galvanized, RFID-enabled.

Item No: DA-838

Features

  • Shackles are forged alloy steel with safety orange pin, quenched and tempered.
  • Charpy tested in accordance with DNV-ST-E271.
  • Meet the performance requirements of US Federal Specification RR-C-271, Type IVA, Grade A, Class 3.
  • Application of shackles certified in accordance with DNV-ST-E271 and DNV-ST-E273.
  • Size and the Working Load Limit permanently shown on each shackle.
  • All shackles with Traceability Code which links to Test Certificate and quality traceability.
  • Proof tested to 2 times the WLL.
  • Design factor 6:1
  • 20,000 cycle fatigue rated to 1.5 times Working Load Limit.
  • 100% magnaflux crack detection during manufacturing.
  • Charpy test of 42 joules (31ft-lb) at -40°C (-40°F) for normal section.
  • Hot dip galvanized.
