Digital Swivel Point 8-271

Bolt-on lifting points

The standard swivel with new intelligence.

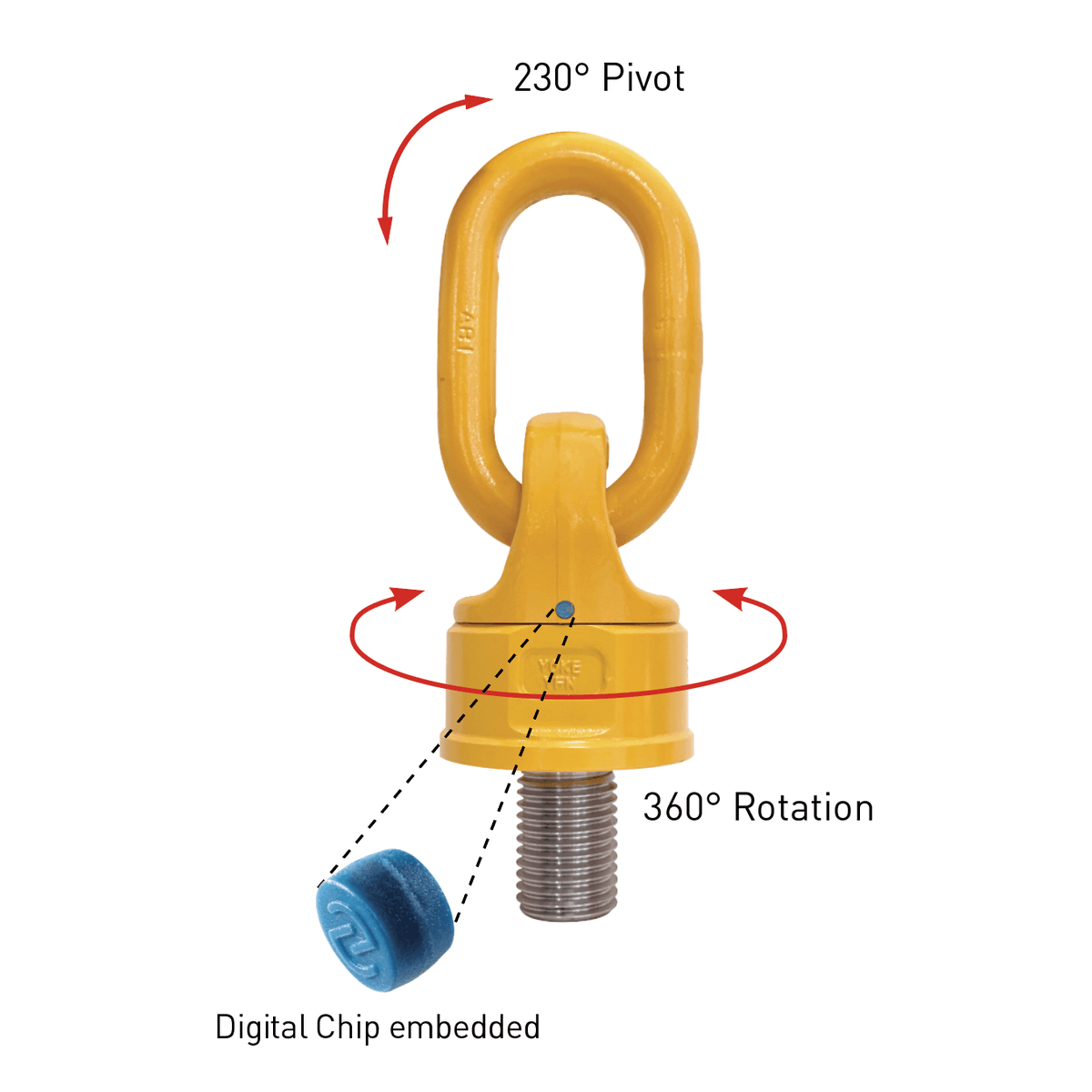

230°/360° mobility, RFID-enabled.

Item No.: 8-271

Features

  • Pivots to 230°, rotates through 360° due to its unique ball bearing design.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Tested in accordance with EN1677-4.
  • Certified by DGUV GS-OA-15-04.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and batch code links to Test Certificate sheet.
  • Bolts are Metric thread.
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Easy to attach or dismantle due to the forged hexagon shaped body of the Swivel Point.
  • Capable of rotating under load. Do not turn continuously in 90 degree direction at full load.
