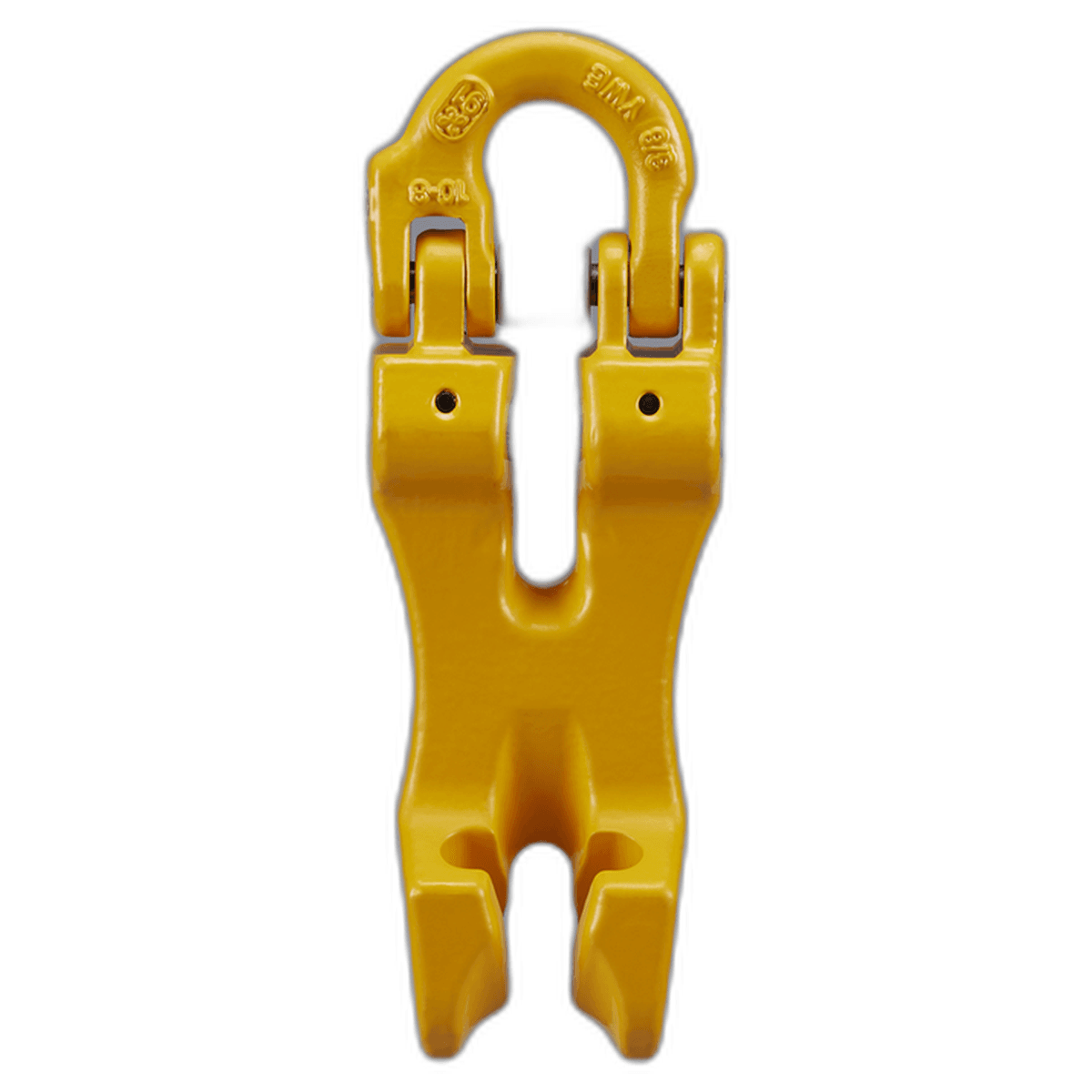

Shortening claw with half-connecting link 8-078

Grade 8

Universally applicable thanks to the half-connector link; ideal for direct shortening at the suspension point. RFID-compatible.

Item No.: 8-078

Features

  • Tempered and hardened alloy steel.
  • Manufactured according to EN 1677-1 and ASTM A952/A952M
  • Certified by DGUV GS-OA-15-05
  • Safety factor 4, breaking load at least four times the load-bearing capacity
  • Load test at 2.5 times the load-bearing capacity
  • Fatigue test with 20,000 cycles at 1.5 times the load-bearing capacity
  • Marking with load-bearing capacity, grade 8, manufacturer's mark, and traceability, and equipped with a BlueSupra tag for unique identification
  • Load-bearing capacity is maintained when shortened, provided the components are installed correctly
  • Manufactured according to EN 1677-1 and ASTM A952/A952M
  • Certified by DGUV GS-OA-15-05
