Anchor Point 8-231

Bolt-on lifting points

The all-rounder for maximum flexibility.

360°/180° mobility, RFID-enabled.

Item No.: 8-231

Features

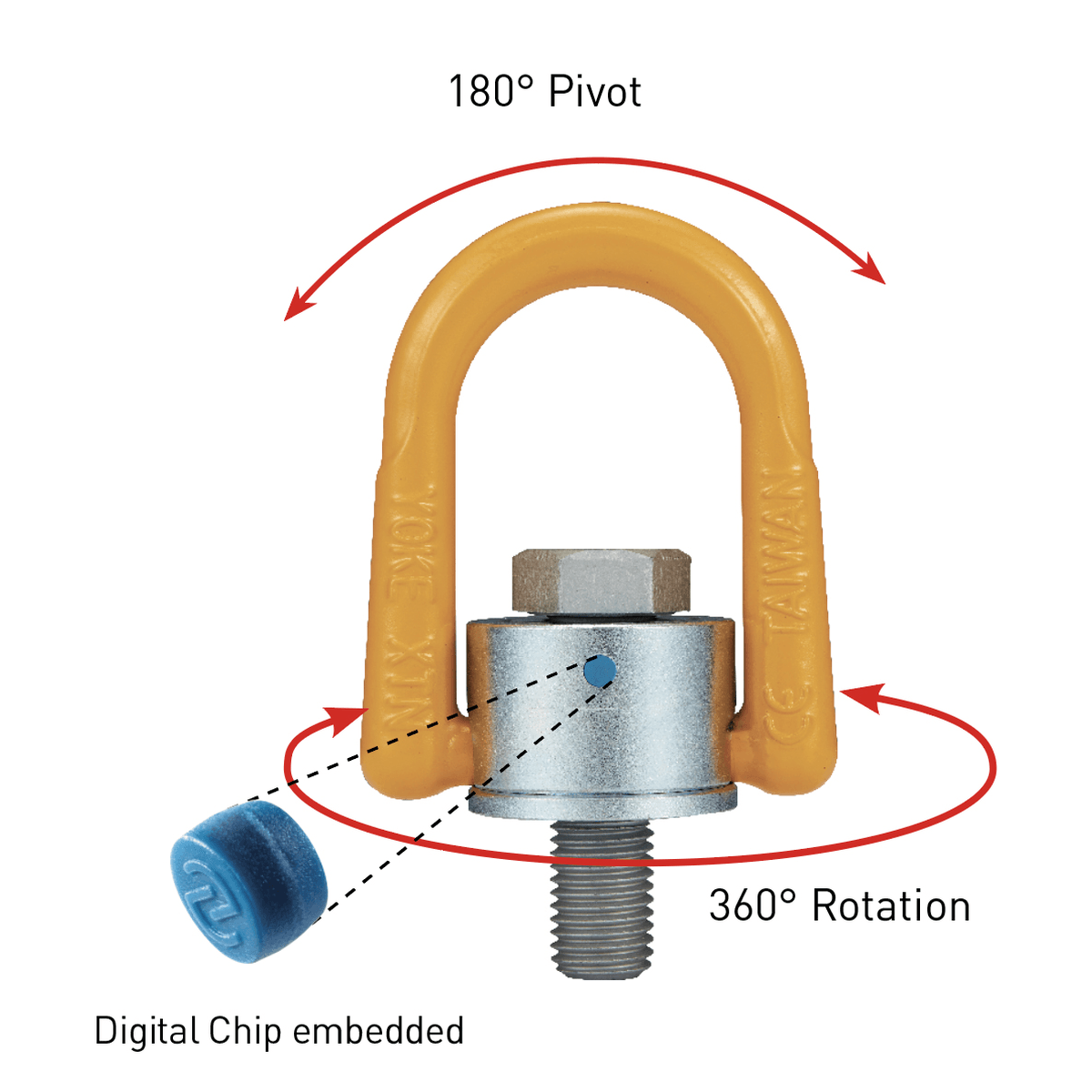

  • Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Tested in accordance with EN1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread.
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
