Insulating swirl separator 8-088N

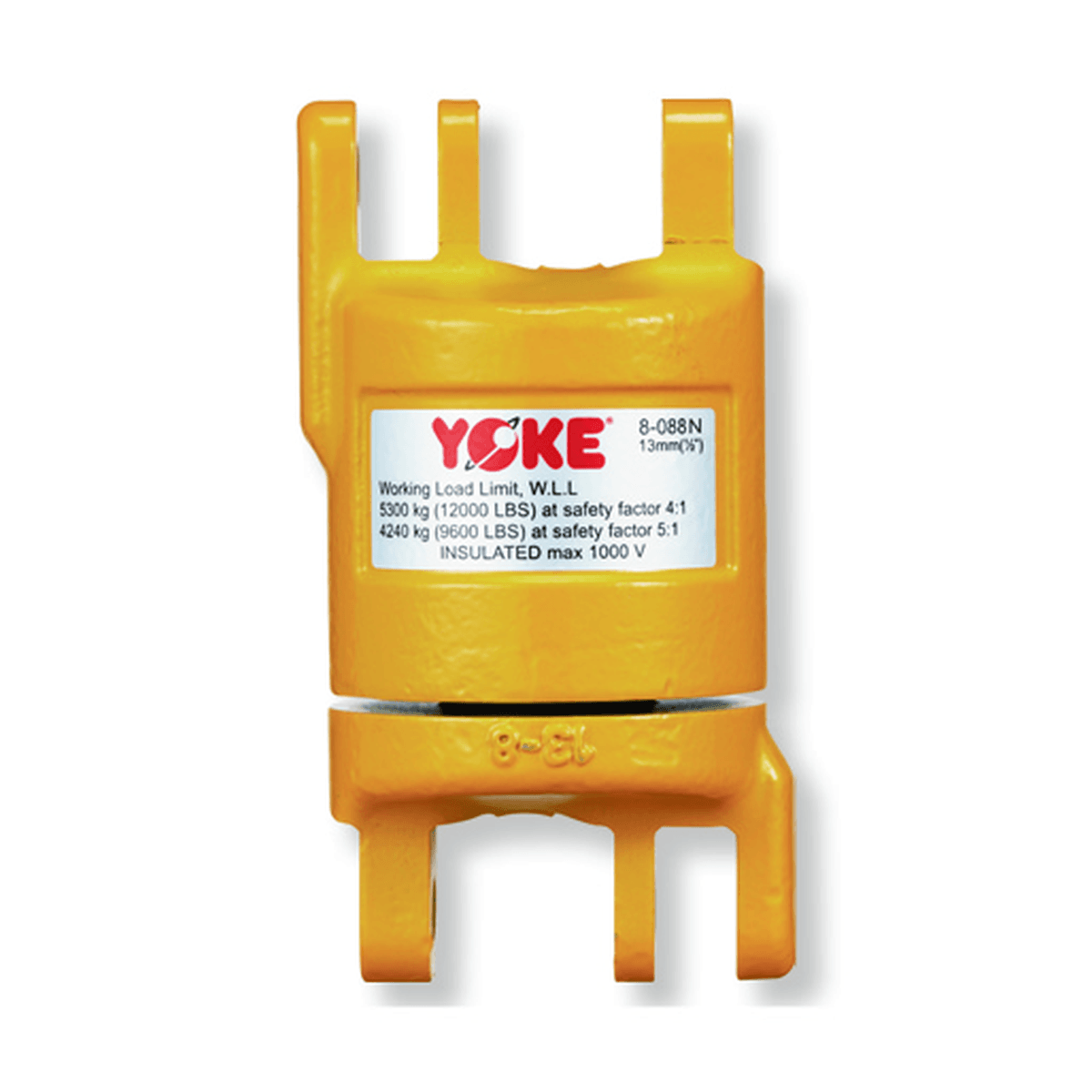

Insulating Swivel 8-088N (GK 8)

Rotary movements under load for crane, lifting, and welding applications.
Combinable with various components, for electrical isolation between load and lifting equipment, RFID-enabled.

Item No.: 8-088N

Features

  • Designed to protect the winch during welding operations on suspended loads.
  • Tempered and hardened alloy steel.
  • Ball bearings for full rotation under load.
  • Safety factor 4:1.
  • Load tested with certificate at 2.5 times the rated load capacity.
  • Insulation tested to 1000 volts with test certificate.
  • Manufactured according to EN 1677-1.
  • Available load capacities from 2 t to 12.5 t.
